Anti-fog Coating Line

Anti-fog Coating Line

  • UV light curing coating, also called Hard coating. When the automobile is running quickly, because of sharp friction with air, temperature on the headlamp surface can reach 90-100 degree, and light need to go through the lens, so the light transmittance of lens material need to reach more than 85%. Now most of the automobile manufactures choose PC (polycarbonate) for making lens, PC belongs to non-crystalline plastic, low hardness, and as one parts of automobile moulding surface, headlamp and automobile body are an integral whole, it will also withstand the impact of sand and sunlight, only relying on PC plastic surface hardness is far from meeting the requirements, therefore, PC lens must be in process of hard coating to make the surface pencil hardness reach 2H standard after molding.

Phone:+86-15852639928, +86-15261100806,


Standard serial number


Oven dimension


Product Name

Anti-fog curing oven

Overall dimension


Basket size


Usage temperature

Room temperature~130℃ adjustable

Basket QTY in total

48 PCS

Driven control

Frequency adjustable

Basket QTY in heating area

35 PCS

Gas consumption

0.5-0.8MPa, 250L/h

Running power

Max. 200KW


About 11.3T

Cooling method

Air supply at normal temperature for cooling by AHU

Moving type

Sectional hoisting

Mainly applied to: automobile headlight cover.

The main functional characteristics of the product: for automotive headlight cover (PC material)

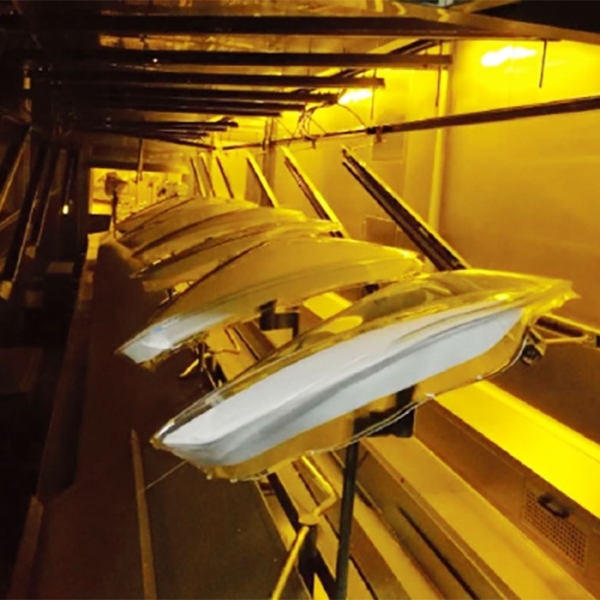

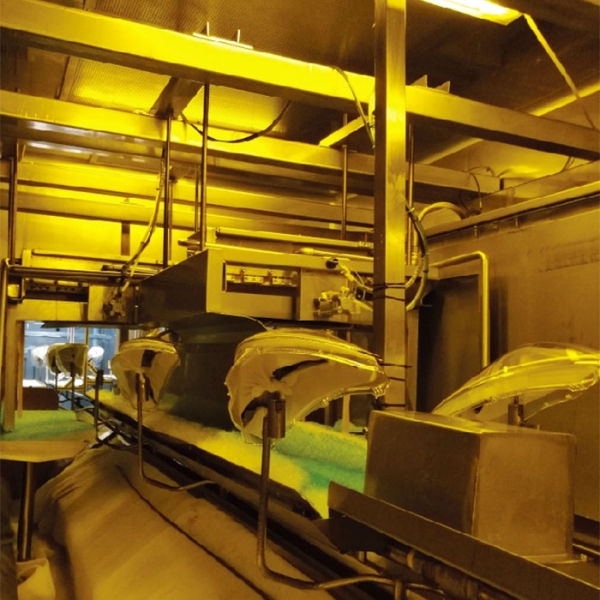

①UV paint spraying and curing treatment on the surface of headlight cover, enhance surface hardness and weather resistance.
②Anti-fog paint spraying and curing treatment on the inner surface of the lamp cover to improve the anti-fog performance of the lamp.

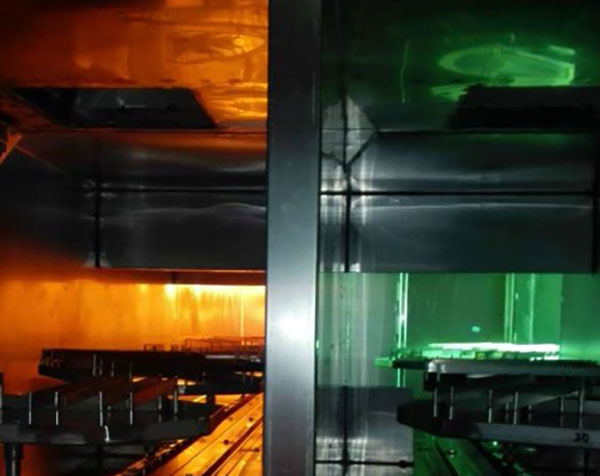

Heating method: IR lamp, electric heat pipe, oven temperature according to the requirements of each process (adjustable between 90℃-130℃), temperature accuracy ± 1.5°C.
