Projector Lens AB-L01 LED Bi-beam Projector Lens

Projector Lens AB-L01 LED Bi-beam Projector Lens

   Send Whatsapp
E-mail:leo@jinway.cn

Detail

Projector Lens AB-L01 LED Bi-beam Projector Lens
Projector Lens AB-L01 LED Bi-beam Projector Lens1
Projector Lens AB-L01 LED Bi-beam Projector Lens2

Product Parameter

Product Name A/BL-L01 Combined LED Bi-beam Projector Lens
Shell Material Aluminum & PEI Holder
LED QTY 2
LED low beam chip 3 chips
LED high beam chip 3 chips / 4 chips
  13W
LED high beam power 13W
Glass Size SPEC (P2-P3)

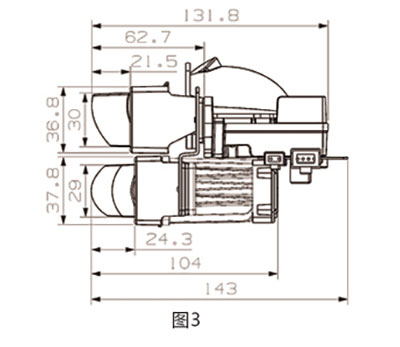

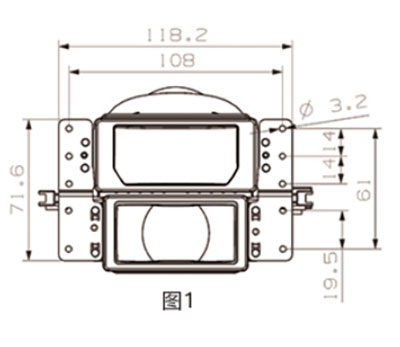

Total Size Installation (P1) Lens group (P2.P3)
LED control mode Native Driver
LED driver current 2.3A
Low beam 25m 3 chips: 28-32Lux
High beam 25m 4 chips: 85-90Lux / 3 chips: 60-70Lux
Low beam color temperature 5700K-6100K
High beam color temperature 5700K-6100K
Luminance 1100Lm
Input Voltage DC 12-14.5V
Light-change Mode High low beam combined
Circuit Projector Lens AB-L01 LED Bi-beam Projector Lens3Projector Lens AB-L01 LED Bi-beam Projector Lens4Projector Lens AB-L01 LED Bi-beam Projector Lens5Anode Amode Cathod
Light REG ECE / SAE / GB
LHD/RHD LH/RH Driving
Environment Temp.: -40℃ to +80℃; Humidity: 10%-50%
Cooling Method Low beam metal conduction High beam metal+cooling

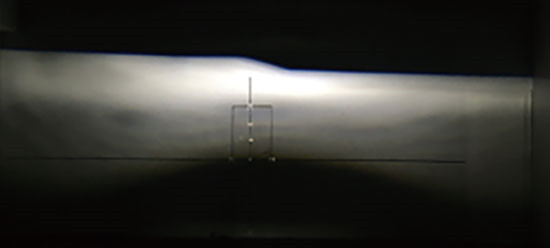

Light Pattern

Projector Lens AB-L01 LED Bi-beam Projector Lens6
