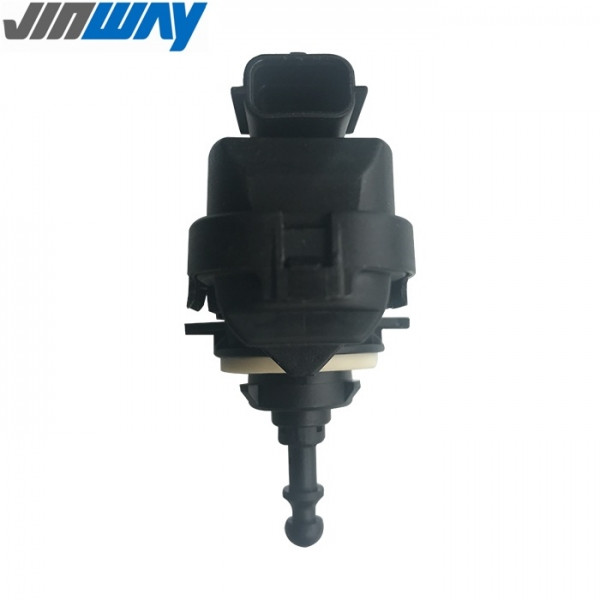

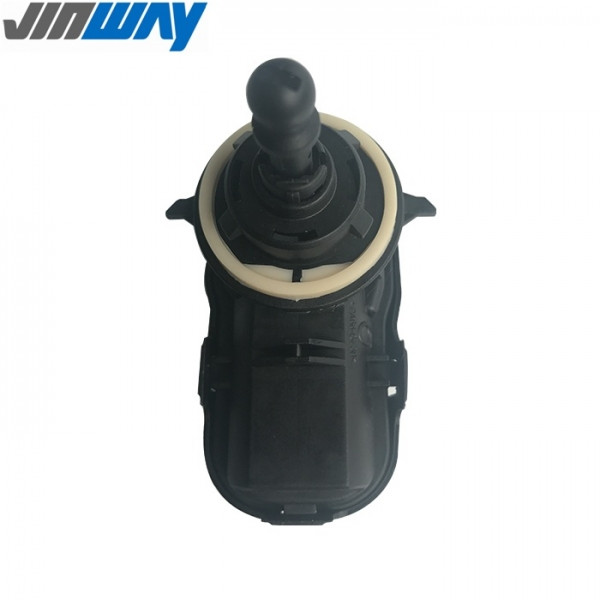

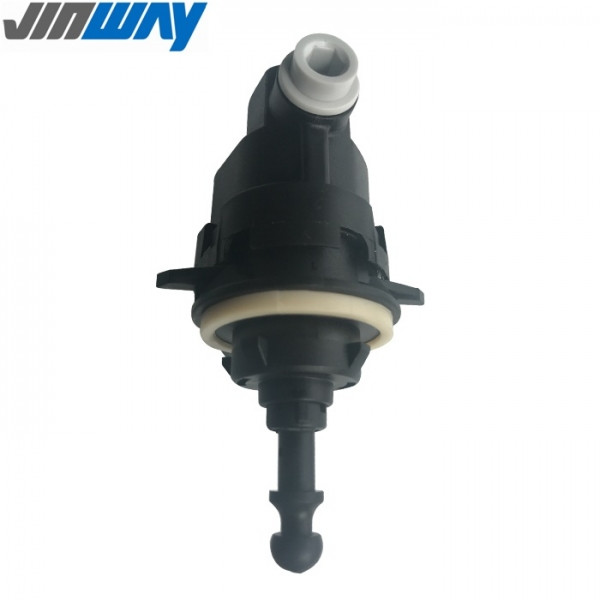

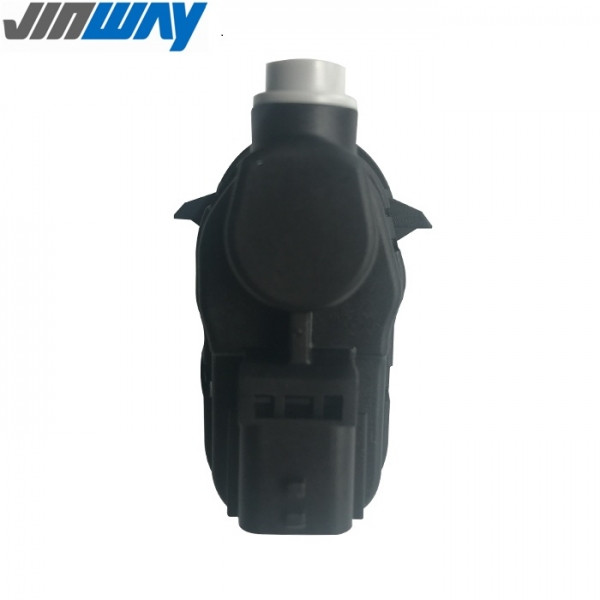

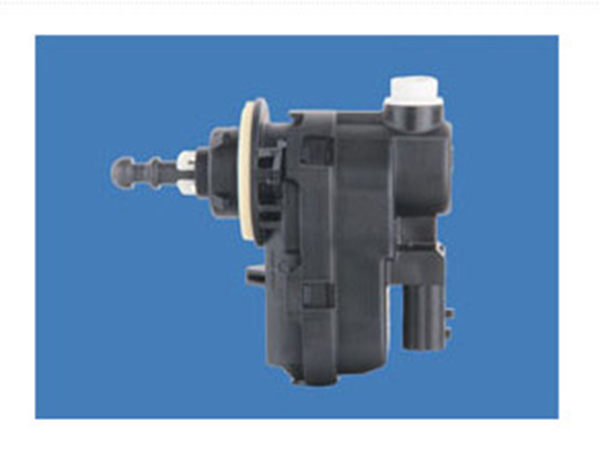

Leveling Motor 203AZ12V

Leveling Motor 203AZ12V

  • The headlight leveling motor (headlamp leveling actuator) is a kind of motor applied in the automobile headlight dimming drive, which has the function of deceleration and transmission, and the main transmission structure is assembled by drive. Motor, gear box assembly; drive motor can be DC brush motor, DC brushless motor, stepper motor, hollow cup motor, micro motor as the drive motor, gear box can be used planetary gear box, worm gear box, custom gear box services; output power within 50W, voltage within 24V, diameter specifications within 38mm small power micro motor. headlight leveling motor (headlamp leveling actuator) usually uses custom headlight dimming motor gearbox parameters.Adjustable headlight height means that the headlight has the function of adjusting the light irradiation angle, by adjusting the headlight irradiation angle in order to get the best irradiation range, so as to improve road driving safety.

   Send Whatsapp
E-mail:leo@jinway.cn

Detail

Minimum order quantity: 500 pieces

Product number203AZ12V
Working voltage:12V

Leveling Motor 203AZ12V
erformance parameters

Item

Standard values

Item

Standard values

Rated working voltage

12V

running speed

0.7±0.2mm/s

Working current

≤400mA

Push-pull force

≥40N

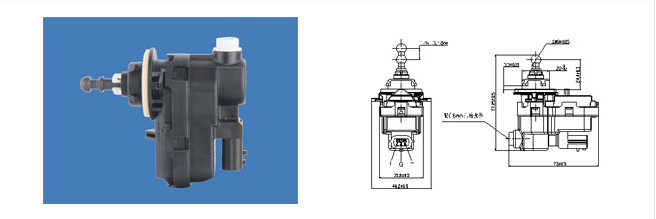

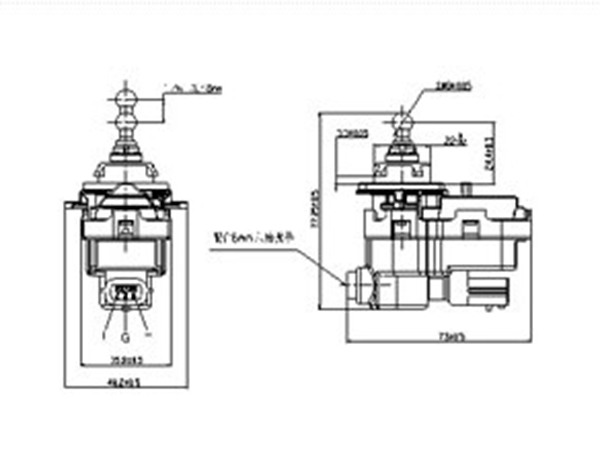

Mounting dimension

SΦ8.0±0.1mm

Distance of travel

4.8±0.3mm

Internal/external position

external

Adaptable auto mode

sign301/307/308、Nissan march、Runna
